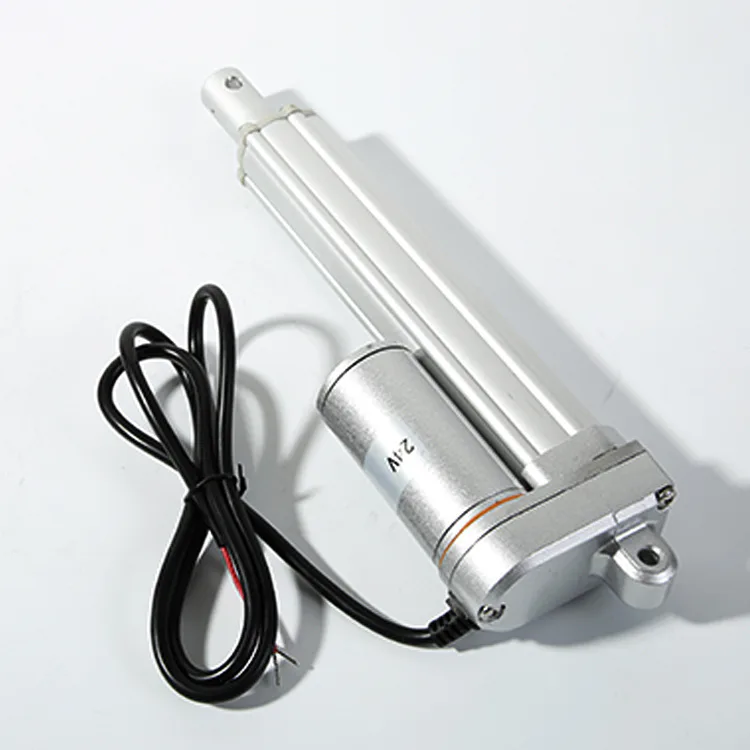

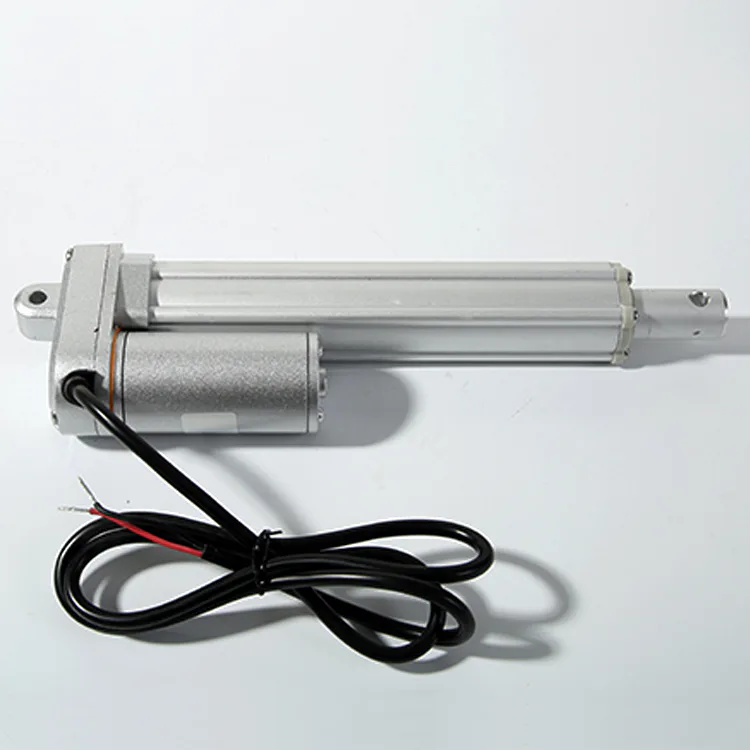

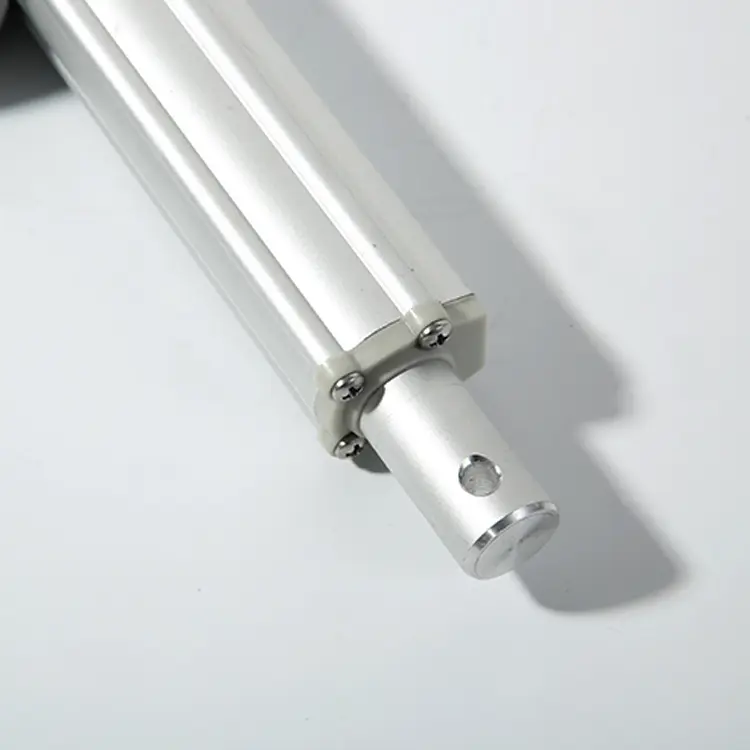

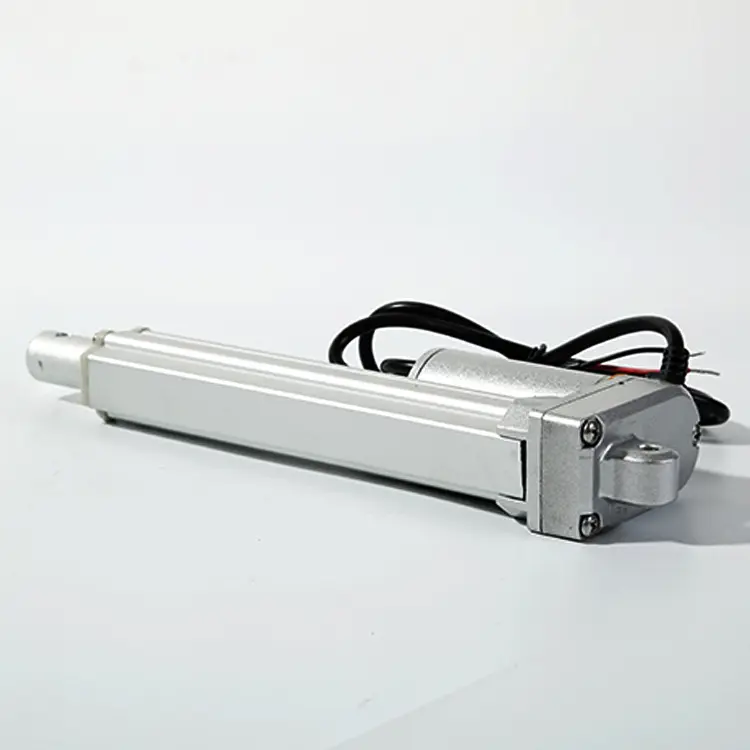

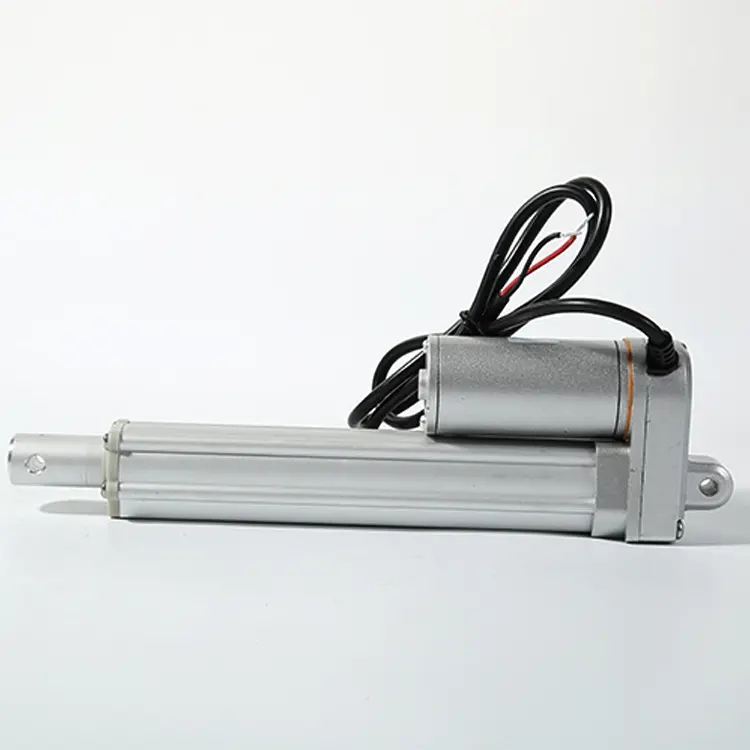

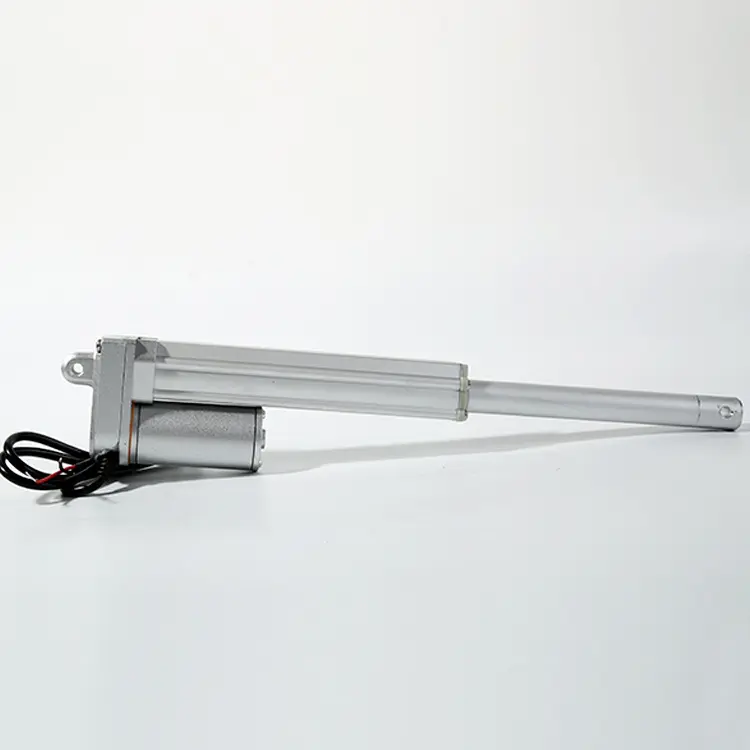

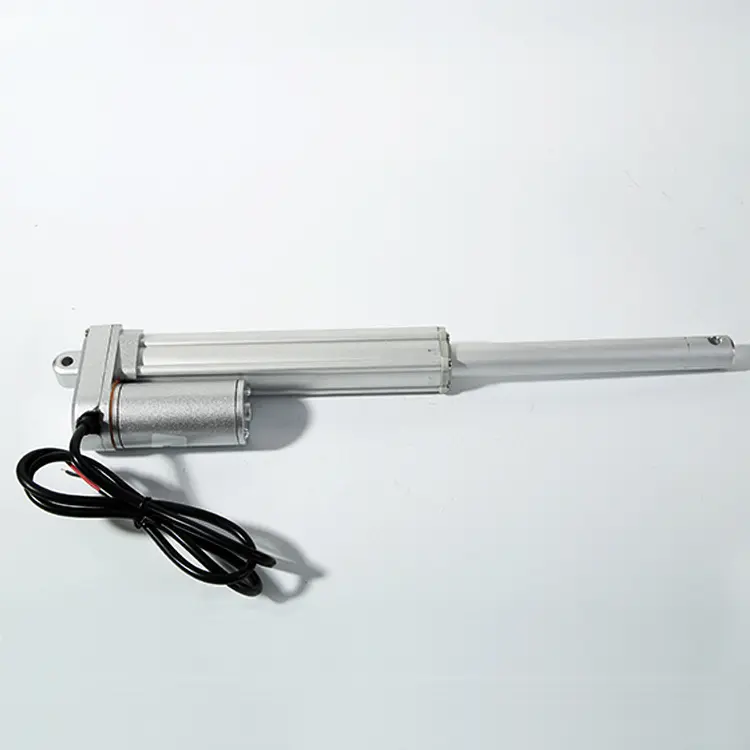

Electric Cylinder
DC permanent magnet motor, simple and compact structure, made of pure metal stainless steel seamless steel tube, sturdy and durable;
Request a quote
01
Overview
1. DC permanent magnet motor, simple and compact structure, made of pure metal stainless steel seamless steel tube, sturdy and durable;
2. Optional input voltage: 12V/24V/36V/48V DC;
3. According to the use requirements, the optional speed is from 5mm/s to 120mm/s;
4. Customizable itinerary (Stroke);
5. Thrust load is 100N to 1200N;
6. Conventional temperature: -15 ℃ to 45 ℃, can reach -40 ℃ to 60 ℃ under special customization;
7. Optional signal feedback type: potentiometer, Hall;
8. With built-in travel switch, there is a good self-locking function, no sliding or slipping;
9. The equipment has an overcurrent protection function;

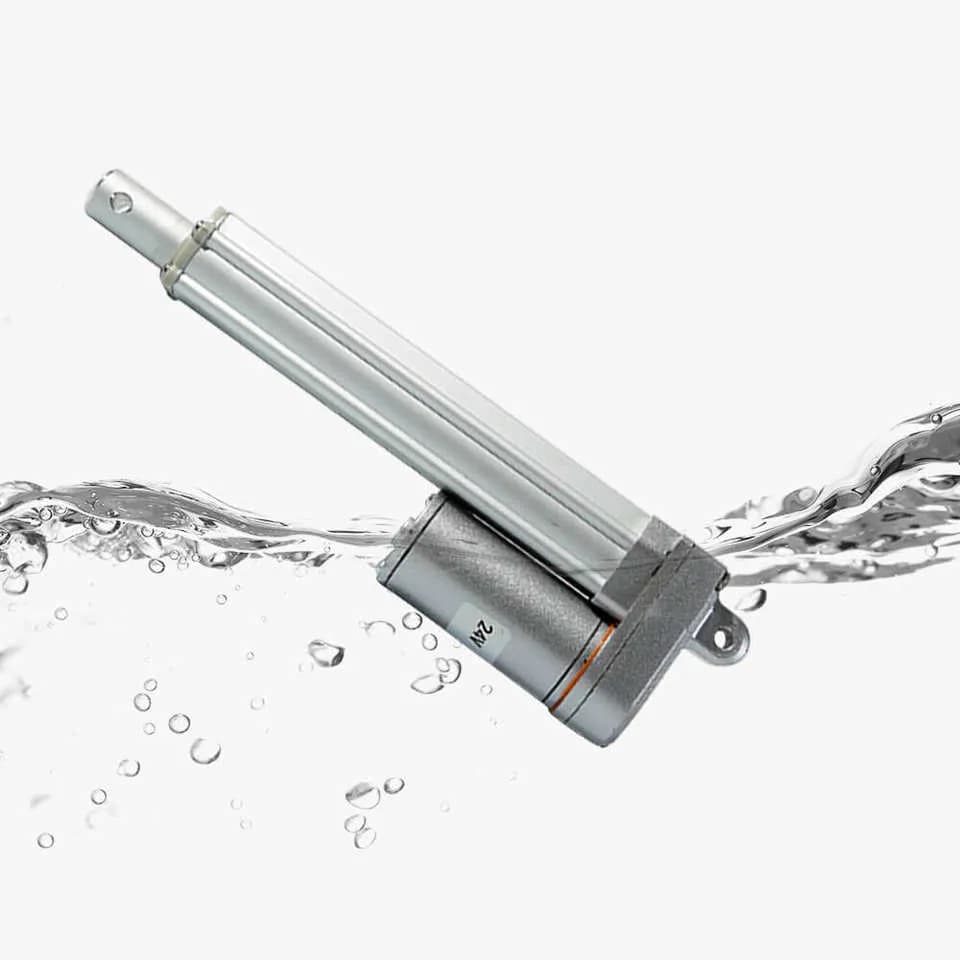

10. The protection level is IP65: (1) The product adopts alloy gear, high strength, long life and wear resistance; (2) Passed CE certification, salt spray, waterproof, temperature test, with anti-corrosion function;
11. The slider can be customized before and after the product, and the selection is flexible and unlimited;
12. This product is widely used; special vehicles, mining properties, environmental sanitation industry, etc.
